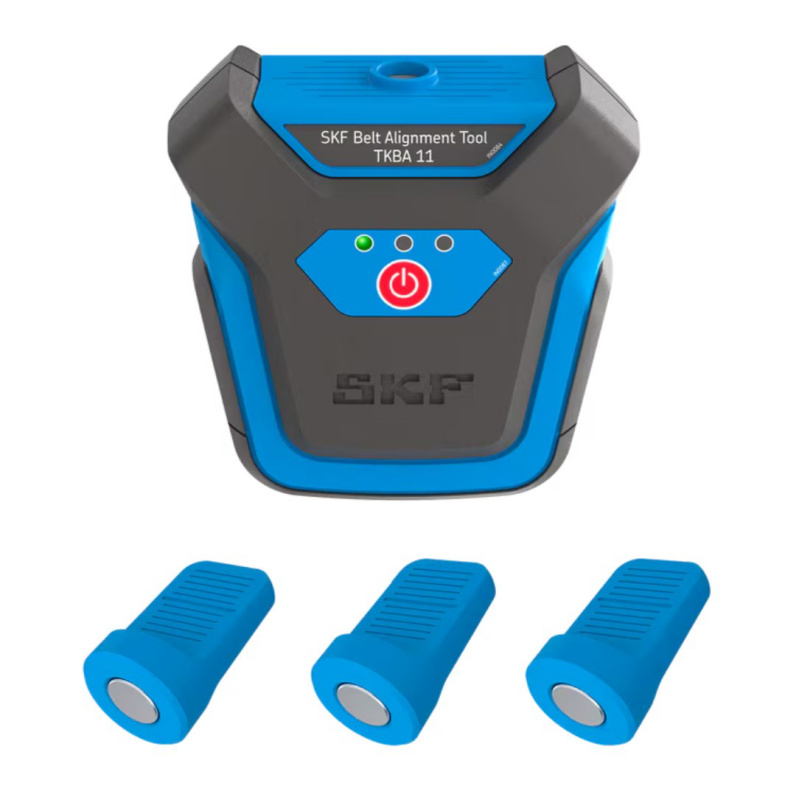

Precision system for aligning belt pulleys and chain drives The system consists of two components: a laser transmitter and three passive targets.

Each can be quickly and easily attached to the inside or outside of the belt pulley or chain wheel using a powerful magnet.

TKBA 11 is suitable for most machines with V-belts, V-ribbed belts, V-ribbed belts, and sprockets.

The transmitter emits a laser line to the passive targets mounted on the opposite pulley.

The tool then corrects vertical and horizontal misalignments and parallel misalignments, as well as combinations of all three types of misalignments.

A laser emitter with three passive targets Uses a red laser diode and can be used for distances up to 3 m Quick and easy mounting Simplified alignment process Alignment and simultaneous adjustment of belt tension Suitable for most machines that use V-belts, composite V-belts, V-ribbed belts, or sprockets
