Advanced professional system for aligning belt and chain drives

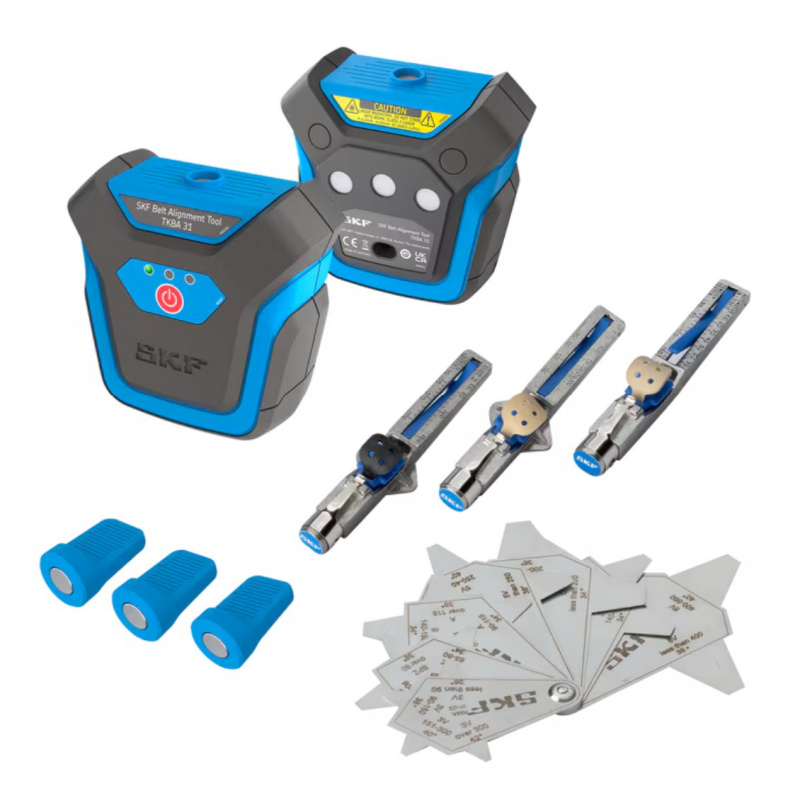

The tool consists of two components: a transmitter laser and a receiver.

Each can be quickly and easily attached to the inside or outside of the belt pulley or sprocket using a powerful magnet.

TKBA 31 is suitable for most machines with V-belts, V-ribbed belts, V-ribbed belts, and sprockets.

A transmitter emits a laser line to the receiver mounted on the opposite pulley. The tool then corrects vertical and horizontal misalignments and parallel misalignments, as well as combinations of all three types of misalignments.

• Two laser receivers
• Each unit uses a green laser diode, can be used for distances up to 6 m, and is also suitable for outdoor use in sunlight.
• Three targets
• Three belt tension gauges
• Wear gauges

• Quick and easy attachment thanks to powerful magnets
• Simplified alignment process
• Alignment and simultaneous adjustment of belt tension
• Suitable for most machines that use V-belts, V-ribbed belts, V-ribbed belts, or sprockets
